本文共 6733 字，大约阅读时间需要 22 分钟。

17.11 MVC案例_用户信息列表展示

17.11.1 需求分析与设计

• 1.需求： 用户信息的增删改查操作

• 2.设计：

  • 技术选型：
    • Servlet（控制器）+JSP（显示页面）+MySQL（数据库）+JDBCTempleat（简单的对MySQL进行封装）+Duird（数据库连接池，提高连接性能）+BeanUtilS（封装数据）+tomcat（服务器）
  • 数据库设计

• 3.开发：

  • 环境搭建:
    • 创建数据库环境 ;
    • 创建项目，导入需要的jar包 ；
    • 编码 。

• 4.测试

• 5.部署运维

17.11.2 环境搭建

• 1.创建数据库环境：

create database day17; -- 创建数据库use day17; 			   -- 使用数据库create table user(   -- 创建表	id int primary key auto_increment,	name varchar(20) not null,	gender varchar(5),	age int,	address varchar(32),	qq	varchar(20),	email varchar(50));

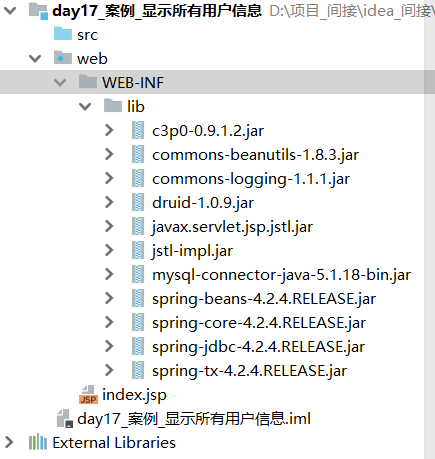

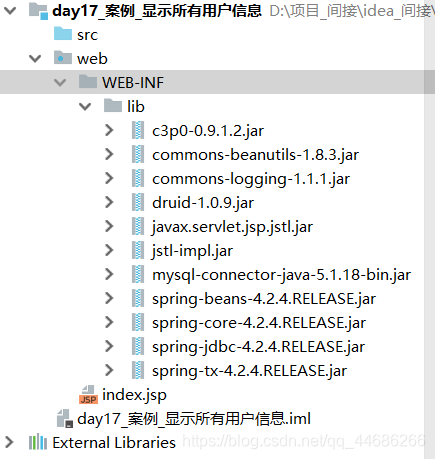

• 2.创建项目，导入需要的 jar包：

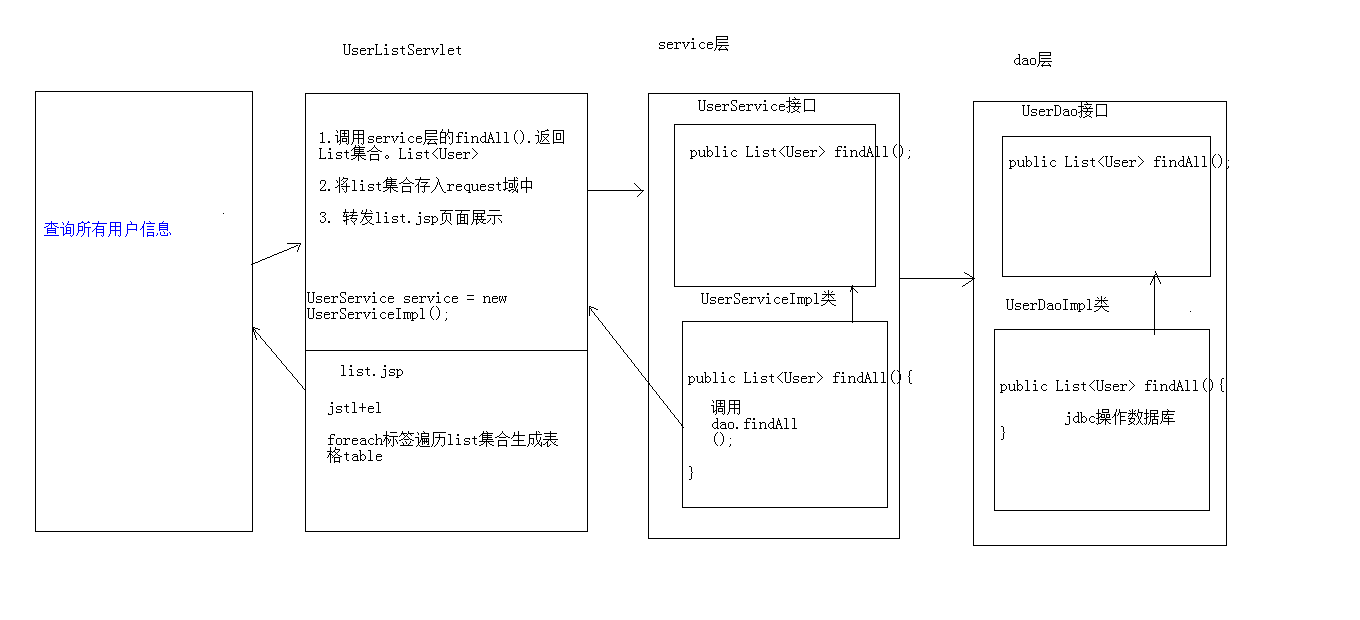

17.11.3 列表查询分析

17.11.4 列表查询_代码

<%--  Created by IntelliJ IDEA.  User: 徐巍巍  Date: 2021/2/13  Time: 10:31  To change this template use File | Settings | File Templates.--%><%@ page contentType="text/html;charset=UTF-8" language="java" %>









    查询所有用户信息


<%@ page contentType="text/html;charset=UTF-8" language="java" %><%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>















用户信息列表







编号

姓名

性别

年龄

籍贯

QQ

邮箱

操作



${s.count}

${user.name}

${user.gender}

${user.age}

${user.address}

${user.qq}

${user.email}

修改 删除



添加联系人





package com.xww.domain;public class User {       private int id;    private String name;    private String gender;    private int age;    private String address;    private String qq;    private String email;    public int getId() {           return id;    }    public void setId(int id) {           this.id = id;    }    public String getName() {           return name;    }    public void setName(String name) {           this.name = name;    }    public String getGender() {           return gender;    }    public void setGender(String gender) {           this.gender = gender;    }    public int getAge() {           return age;    }    public void setAge(int age) {           this.age = age;    }    public String getAddress() {           return address;    }    public void setAddress(String address) {           this.address = address;    }    public String getQq() {           return qq;    }    public void setQq(String qq) {           this.qq = qq;    }    public String getEmail() {           return email;    }    public void setEmail(String email) {           this.email = email;    }    @Override    public String toString() {           return "User{" +                "id=" + id +                ", name='" + name + '\'' +                ", gender='" + gender + '\'' +                ", age=" + age +                ", address='" + address + '\'' +                ", qq='" + qq + '\'' +                ", email='" + email + '\'' +                '}';    }}

package com.xww.util;import com.alibaba.druid.pool.DruidDataSourceFactory;import javax.sql.DataSource;import javax.xml.crypto.Data;import java.io.IOException;import java.io.InputStream;import java.sql.Connection;import java.sql.SQLException;import java.util.Properties;/** * JDBC工具类 使用Durid连接池 */public class JDBCUtils {       private static DataSource ds ;    static {           try {               //1.加载配置文件            Properties pro = new Properties();            //使用ClassLoader加载配置文件，获取字节输入流            InputStream is = JDBCUtils.class.getClassLoader().getResourceAsStream("druid.properties");            pro.load(is);            //2.初始化连接池对象            ds = DruidDataSourceFactory.createDataSource(pro);        } catch (IOException e) {               e.printStackTrace();        } catch (Exception e) {               e.printStackTrace();        }    }    /**     * 获取连接池对象     */    public static DataSource getDataSource(){           return ds;    }    /**     * 获取连接Connection对象     */    public static Connection getConnection() throws SQLException {           return  ds.getConnection();    }}

package com.xww.web.servlet;import com.xww.domain.User;import com.xww.service.UserService;import com.xww.service.impl.UserServiceImpl;import javax.servlet.ServletException;import javax.servlet.annotation.WebServlet;import javax.servlet.http.HttpServlet;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import java.io.IOException;import java.util.List;@WebServlet("/userListServlet")public class UserListServlet extends HttpServlet {       protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {           //1.调用UserService完成查询        UserService service = new UserServiceImpl();        List

     users = service.findAll();        //2.将list存入request域        request.setAttribute("users",users);        //3.转发到list.jsp        request.getRequestDispatcher("/list.jsp").forward(request,response);    }    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {           this.doPost(request, response);    }}


package com.xww.service;import com.xww.domain.User;import java.util.List;/** * 用户管理的业务接口 */public interface UserService {       /**     * 查询所有用户信息     * @return     */    public List

     findAll();}


package com.xww.service.impl;import com.xww.dao.UserDao;import com.xww.dao.impl.UserDaoImpl;import com.xww.domain.User;import com.xww.service.UserService;import java.util.List;public class UserServiceImpl implements UserService{       private UserDao dao = new UserDaoImpl();    @Override    public List

     findAll() {           //调用Dao完成查询        return dao.findAll();    }}


package com.xww.dao;import com.xww.domain.User;import java.util.List;/** * 用户操作的DAO */public interface UserDao {       public List

     findAll();}


package com.xww.dao.impl;import com.xww.dao.UserDao;import com.xww.domain.User;import com.xww.util.JDBCUtils;import org.springframework.jdbc.core.BeanPropertyRowMapper;import org.springframework.jdbc.core.JdbcTemplate;import java.util.List;public class UserDaoImpl implements UserDao{       private JdbcTemplate template = new JdbcTemplate(JDBCUtils.getDataSource());    @Override    public List

     findAll() {           //使用JDBC操作数据库...        //1.定义sql        String sql = "select * from user";        List

      users = template.query(sql, new BeanPropertyRowMapper

      (User.class));        return users;    }}
